ドローンモーター
Created with Pixso. DRONE MOTOR LN8313 120KV

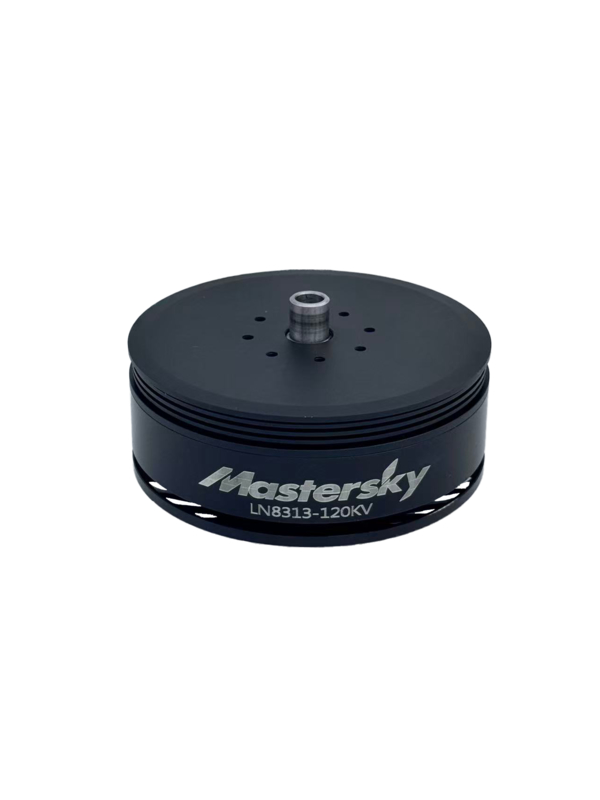

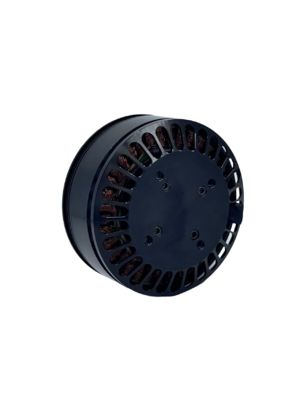

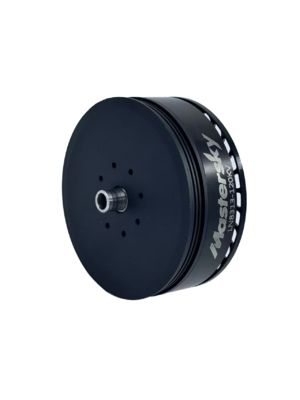

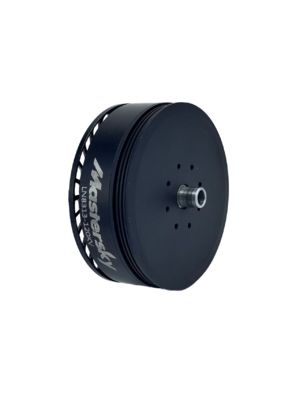

DRONE MOTOR LN8313 120KV

ブランド名: Retek
モデル番号: 鋼鉄のギア
Moq: 1000pcs
価格: 交渉可能
納期: 10日
詳細情報
起源の場所:
中国
証明:
CCC,UL
パッケージの詳細:
25pcs/carton
供給の能力:
10000pcs/月
製品説明



This precision-engineered DC motor serves as a reliable power core for mid-to-large drones, ideal for commercial, industrial, and professional UAV applications. It meets modern drone needs—stable flight control and long-duration missions—making it suitable for both ready-made models and custom-built UAV projects.​



  • Rated Voltage: 60VDC
  • Motor Rotation Direction: CCW rotation;
  • Motor Withstand Voltage Test: ADC 600V/3mA/1Sec
  • No-Load Performance: 3600±10% RPM (Revolutions Per Minute) / 1.5A Max (maximum current)
  • Load Performance: 2770±10% RPM / 75.9A±10% / 13.7N·m (Newton - meter, torque)
  • Motor Vibration: ≤7 m/s²
  • Backlash: 0.01 - 0.2mm
  • Noise: ≤60dB/1m (ambient noise ≤45dB during testing)
  • Insulation Class: CLASS F
  • Motor Operation: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during operation
  • Motor Appearance: Clean and free of rust
