ドローンモーター
Created with Pixso. LN4218D24-001 350KV

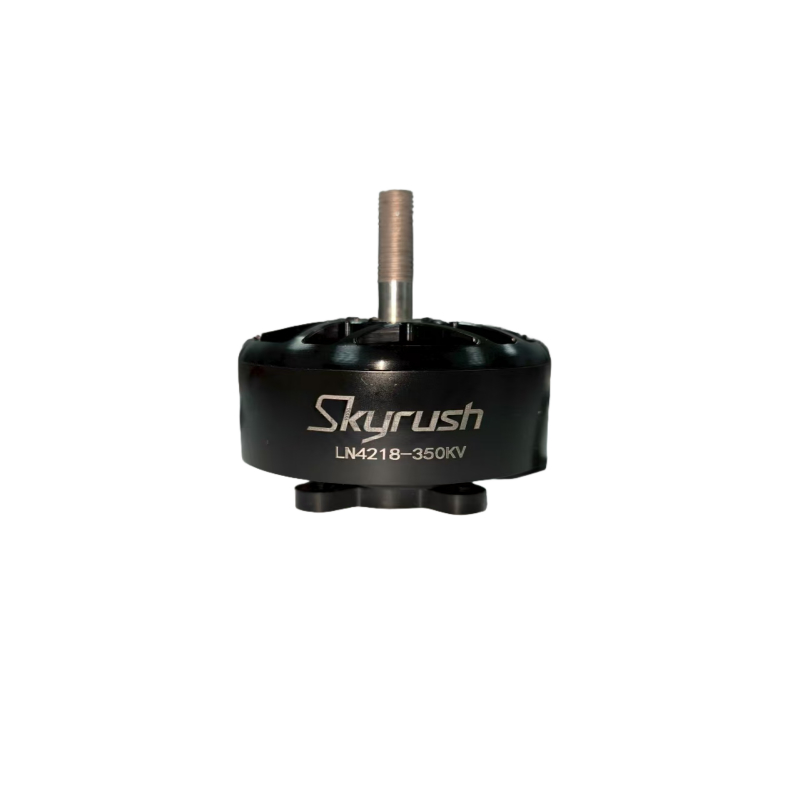

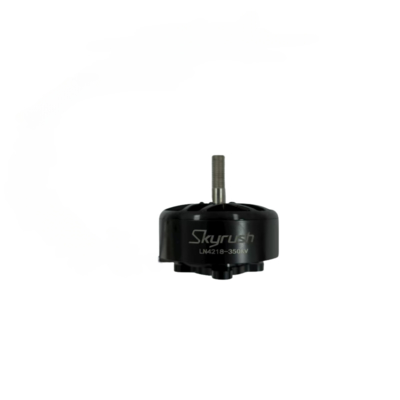

LN4218D24-001 350KV

ブランド名: Retek
モデル番号: 鋼鉄のギア
MOQ: 1000pcs
価格: negotiable
配達時間: 10日
詳細情報
起源の場所:
中国
証明:
CCC,UL
パッケージの詳細:
25pcs/carton
供給の能力:
10000pcs/月
製品の説明

The LN4218D24-001 is a tailored motor for small-to-mid-sized drones, ideal for commercial and professional scenarios. Its key uses include powering aerial photography drones—delivering steady thrust to avoid footage blur for clear content—and entry-level industrial inspection drones, supporting short-to-mid flights to check small-scale infrastructure like rooftop solar panels. It also suits hobbyist drones for aerial exploration and lightweight logistics drones for transporting tiny loads (e.g., small parcels).



  • Rated Voltage : 24VDC
  • Motor withstand voltage test: ADC 600V/3mA/1Sec
  • No-load performance: 8400±10% RPM/2A Max
  • Load performance:7000±10% RPM/35.8A±10%/0.98N.m
  • Motor vibration: ≤ 7 m/s
  • Motor rotation direction: CCW
  • Duty: S1, S2
  • Operational Temperature: -20°C to +40°C
  • Insulation Grade: Class F
  • Bearing Type: durable brand ball bearings
  • Optional shaft material: #45 Steel, Stainless Steel, Cr40
  • Certification: CE, ETL, CAS, UL
