LN4730D24-001 290KV

ブランド名: Retek
モデル番号: 鋼鉄のギア
MOQ: 1000pcs
価格: negotiable
配達時間: 14days
詳細情報
起源の場所:
中国
証明:
CCC,UL
パッケージの詳細:
25pcs/carton
供給の能力:
10000pcs/月
製品の説明

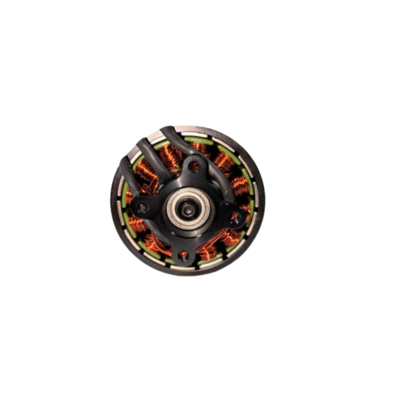

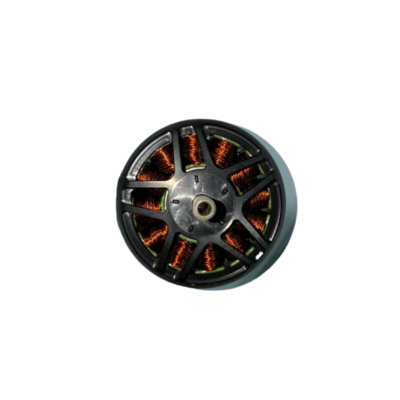

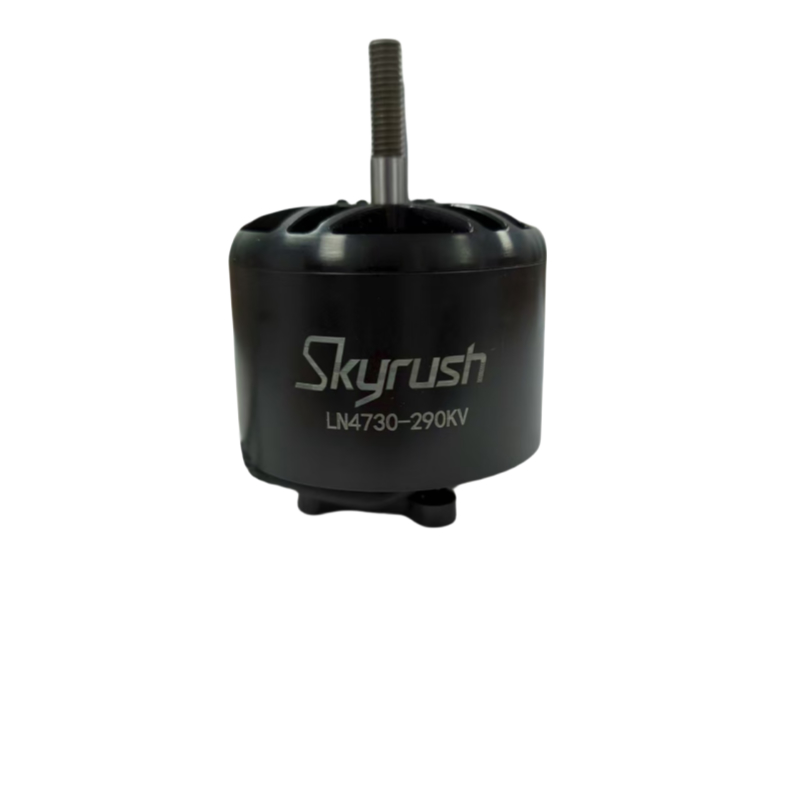

The LN4730D24-001 with 290kV  is  high-performance motor tailored for mid-sized drones, ideal for commercial and professional scenarios. Its key uses include powering aerial photography/videography drones—delivering steady thrust to avoid footage blur—and industrial inspection drones, supporting long flights to check infrastructure like power lines or wind turbines. It also suits small logistics drones for safe light-load transport and custom builds needing balanced power.



  • Rated Voltage : 24VDC
  • Motor withstand voltage test: ADC 600V/3mA/1Sec
  • No-load performance: 9164 ± 10% RPM / 2A Max
  • Load performance: 8000 ± 10% RPM / 34.6A ± 10% / 1.18 N.m
  • Motor vibration: ≤ 7 m/s
  • Motor rotation direction:CCW
  • Duty: S1, S2
  • Operational Temperature: -20°C to +40°C
  • Insulation Grade: Class F
  • Bearing Type: durable brand ball bearings
  • Optional shaft material: #45 Steel, Stainless Steel, Cr40
  • Certification: CE, ETL, CAS, UL
